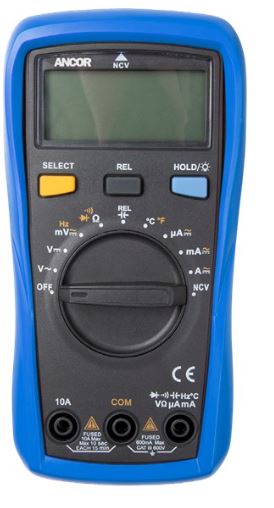

Ancor True RMS 12 Function Digital Multimeter

$109.99
by Ancor
Type: Tools

Ancor True RMS 12 Function

Digital Multimeter

Model: 703073
  • Auto ranging capability allows the meter to automatically determine the resolution based on the application
  • Clear LCD display
  • Comfortable protective cover, with test lead hanging groove
  • High voltage warning
  • Auto power off functionality to save battere life
  • Batteries: two AAA Batteries (not included)
  • Continuity
  • Diode Test
  • NCV
Specifications
DC Voltage (V) 600.0mV, 6000mV/6.000V, 60.00V, 600.0V
AC Voltage (V) 600.0mV, 6000mV/6.000V, 60.00V, 600.0V
DC Current (A) 600.0uA, 6000uA, 60.00mA, 600.0mA, 6.000A, 10.00A
AC Current (A) 600.0uA, 6000uA, 60.00mA, 600.0mA, 6.000A, 10.00A
Resistance 600.0, 6000/6.000k, 60.00k, 600.0k, 60.00M
Capacitance (F) 9.999nF, 99.99nF, 999.9nF, 9.999uF, 99.99uF, 999.9uF, 9.999mF
Frequency (Hz) 10.00Hz-1.000MHz
Temperature (°F) -40°F to 1832°F
Temperature (°C) -40°C to 1000°C
Overload Protection 600V rms
CAT Rating CAT 111 600V
