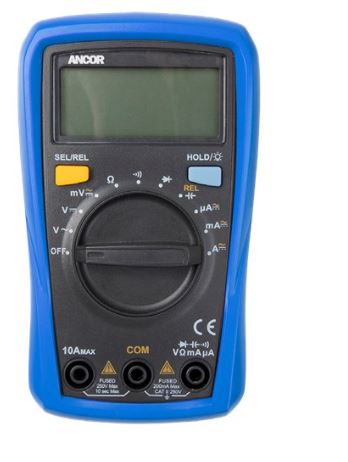

Ancor 8 Function Digital Multimeter

$54.99
by Ancor
Type: Tools

Ancor 8 Function Digital

Multimeter

Model: 703072
  • Auto ranging capability allows the meter to automatically determine the resolution based on the application
  • Clear LCD display
  • Lighweight, ergonomic design
  • Comfortable protective cover, with test lead hanging groove
  • Loud buzzer sound
  • Batteries: two AAA Batteries (not included)
  • Continuity
  • Diode Test
Specifications
DC Voltage (V) 200.0mV, 2000mV/2.000V, 20.00V, 200.0V, 250V
AC Voltage (V) 200.0mV, 2000mV/2.000V, 20.00V, 200.0V, 250V
DC Current (A) 200.0uA, 2000uA, 20.00mA, 200.0mA. 2.000A, 10.00A
AC Current (A) 200.0uA, 2000uA, 20.00mA, 200.0mA, 2.000A, 10.00A
Resistance 200.0 2000/2.00k, 20.00k, 200.0k, 20.00M, 200.0M
Capacitance (F) 2.000nF, 20.00nF, 2000.0nF, 2.000uF, 20.00uF, 200.0uF, 2.000mF
Overload Protection 250V rms
CAT Rating CA II 250V
