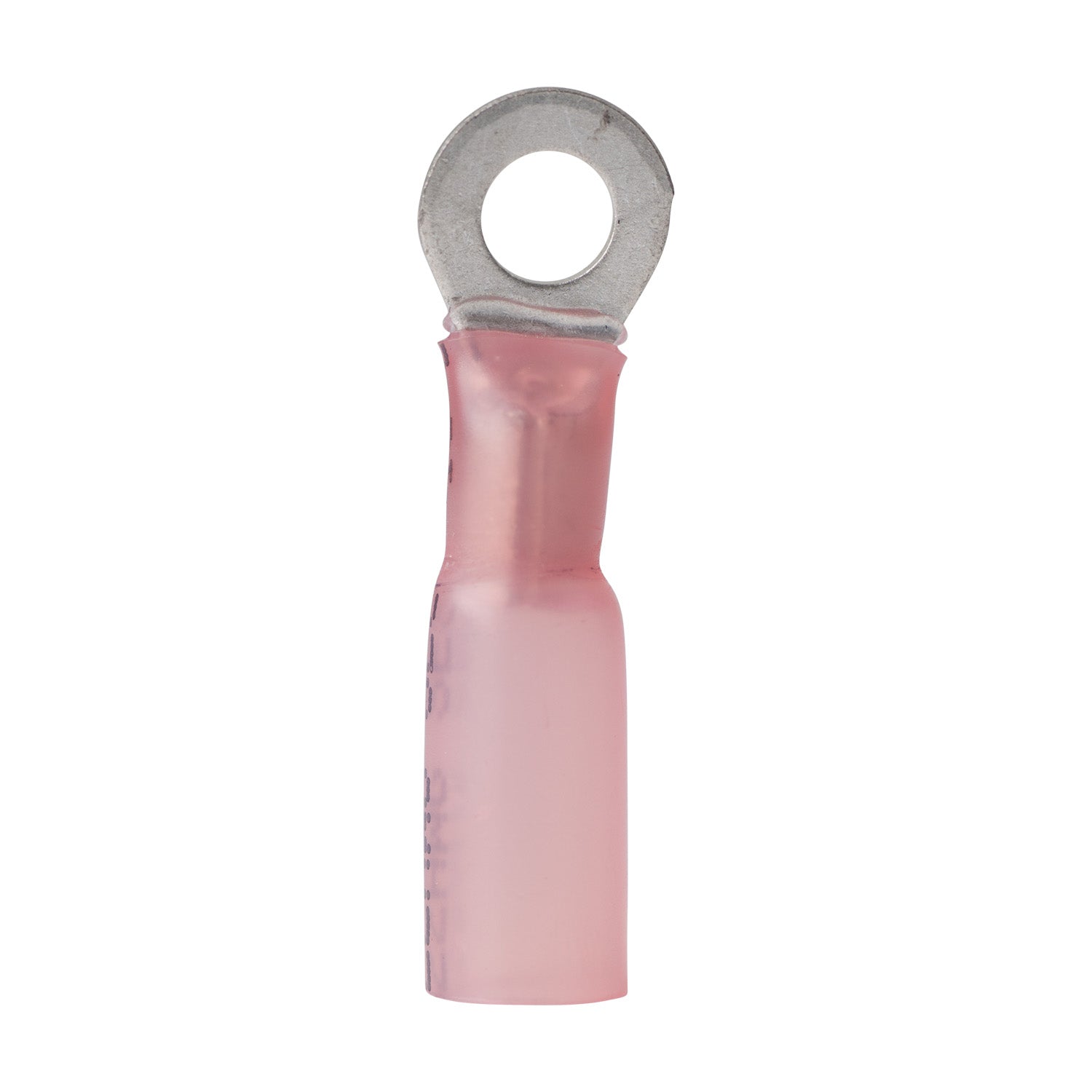

Ancor 22-18 #8 Ring Terminal Heat Shrink Red 100 Pack

$59.73
by Ancor
Type: Wire and Connectors
  • Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.
  • Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.
  • Nylon insulator, preferred by experts, for Marine Grade™ resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.
  • UL Listed and CSA Recognized
  • Highest shrink ratio - shrinks to 1/3 original size.
  • Shrinks at 257° F/125° C.
  • Operating temperature range 40° C to 110° C.
  • ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
  • Shrinks to form a water tight seal and the ultimate vibration and strain relief.
  • Tinned for corrosion resistance.
  • Pure copper for maximum current flow.
  • Brazed seam for maximum strength.

Wire Range mm Screw Size Qty/Pkg Part No
12-10 3-5 #10 100 312399
12-10 3-5 #8 100 312299
12-10 3-5 3/8 100 312699
12-10 3-5 5/16 100 312599
12-10 3-5 1/4 100 312499
16 - 14 1-2 1/4 100 311499
16 - 14 1-2 5/16 100 311599
16 - 14 1-2 3/8 100 311699
16 - 14 1-2 #8 100 311299
16 - 14 1-2 #10 100 311399
22 - 18 0.3-0.8 #10 100 310399
22 - 18 0.3-0.8 #8 100 310299
22 - 18 0.3-0.8 3/8 100 310699
22 - 18 0.3-0.8 6.4 100 310499
