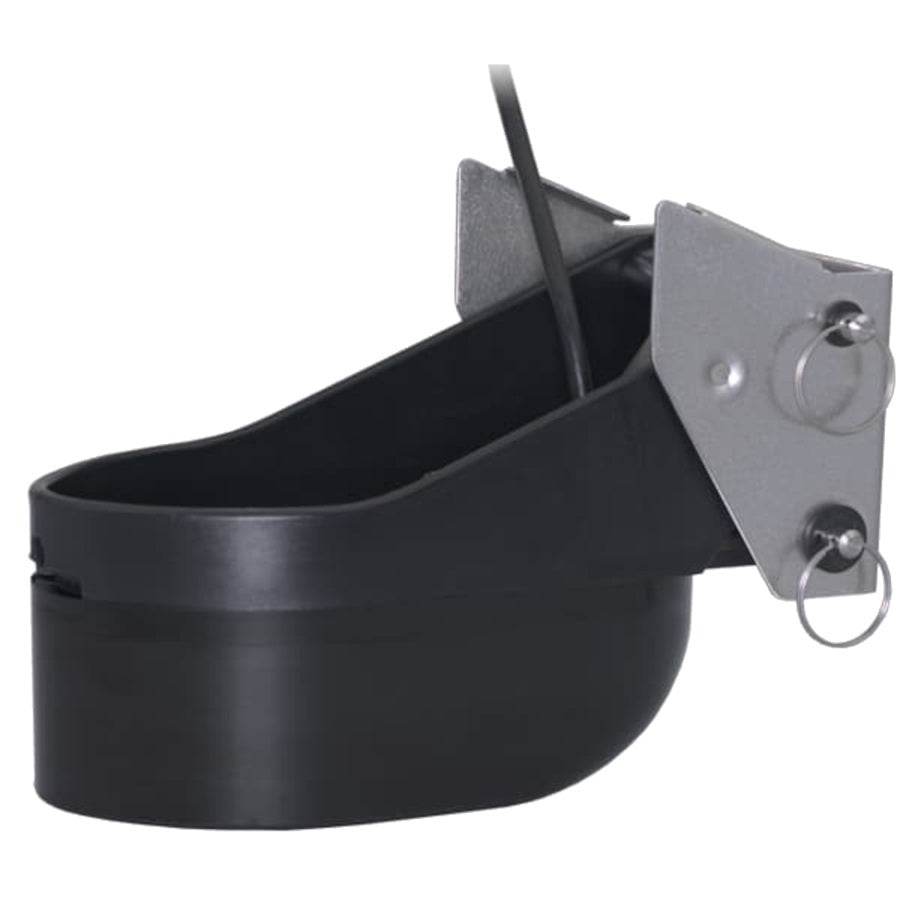

Airmar TM265C Low/Medium CHIRP Transom Mount Transducer with Navico 7-Pin Y-Cable Mix-N-Match Cable
Model: TM265C-LM-BL2
- Depth and fast-response water-temperature sensing
- 1 kW of power for great deep to mid-depth performance
- Low frequency: 42 to 65 kHz, 25° to 16° port-starboard beamwidt, Maximum depth of 914 m (3000')
- Medium frequency: 85 to 135 kHz, 16° to 11° beamwidth, Maximum depth of 457 m (1500')
- 73 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths
- Transom mount stainless steel bracket for installation on boats of all propulsion types
- SEALCAST™, seamless, urethane housing for long life in the water
- Patented Xducer ID® technology
Rely on Airmar's new broadband transducers for the ultimate fishing mission! Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town. Traditional marine fish finders operate at discreet frequencies such as 50 kHz and 200 kHz, use relatively short-duration pulses, and use narrowband sonar transducers. In contrast, Chirp uses a precise sweep pattern of many frequencies within a long-duration transmit pulse from a broadband transducer, so the equivalent sound energy transmitted into the water is 10 to 1,000 times greater than a conventional marine fish finder.
Specifically designed for small boats (25'-40'), the TM265LH Chirps across the following bandwidths:
LH Model - Low Frequency 42-65 kHz/High Frequency 130-210 kHz
Specifications
| Low frequency |
42-65 kHz (25° to 16° beamwidth) |
| Medium Frequency |
85-135 kHz (16°-11°) |
| Cable-Length |
10 m (33') |
| Housing |
Urethane/Stainless Bracket |
| Mounting Style |
Transom |
| Power Rating |
1 kW |
| Single or Dual Frequency |
CHIRP-Ready Dual-Band |
| Transducer Functions |
Depth, Temperature |
| Transom Angle |
3° to 21° |
What's in the Box:
- TM265C-LM-MM
- Transom Mount Hardware
- MMC-BL2 Cable
