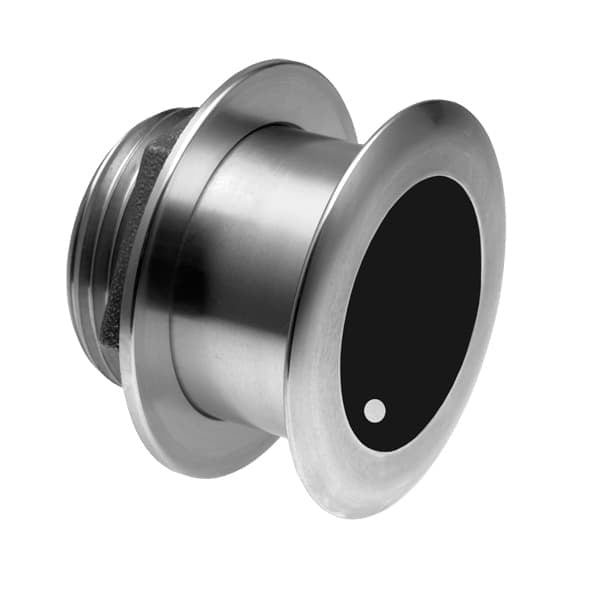

Airmar SS175C-20-HW 20d Tilt
High Wide CHIRP wIth Raymarine 11-Pin
Model: SS175C-20-HW
Get more coverage under your boat with Airmar’s unique wide beam, high frequency Chirp-ready transducers. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high frequency band results in superior resolution. The constant wide beamwidth provides twice the coverage under the boat and excellent fish arches on the display compared to most high frequency narrow beam transducer options.
The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 500'.
Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.
Specifications
| Weight |
2.7 kg (6 lb) |
| Hull Deadrise |
16° to 24° hull deadrise |
| Acoustic Window |
Urethane |
| Hole Size |
98 mm (3-7/8") |
| One internal ceramic assembly |
