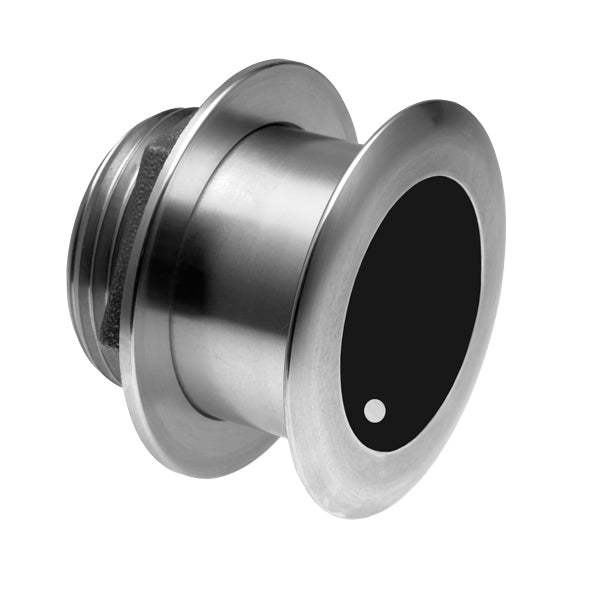

Airmar SS175C-20-H 20d Tilt High CHIRP With Mix-N-Match Plug

$1,155.00
by Airmar

Airmar SS175C-20-H 20d Tilt High CHIRP

Model: SS175C-20-H
  • High—CHIRPS from 130 kHz to 210 kHz, 15° to 9° beamwidth
  • Available in 0°, 12°, or 20° tilted versions
  • 80 kHz of total bandwidth from one transducer
  • Depth & fast-response water-temperature sensor
  • Steel transducer housing
  • Boat Size: Up to 11 m (36’)
  • Hull Type: Steel or aluminum
  • Exclusive Xducer ID® technology

Rely on Airmar’s new broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.

Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.

Specifications
Hull Deadrise 16° to 24° hull deadrise
Acoustic Window Urethane
Weight 2.7 kg (6 lb)
