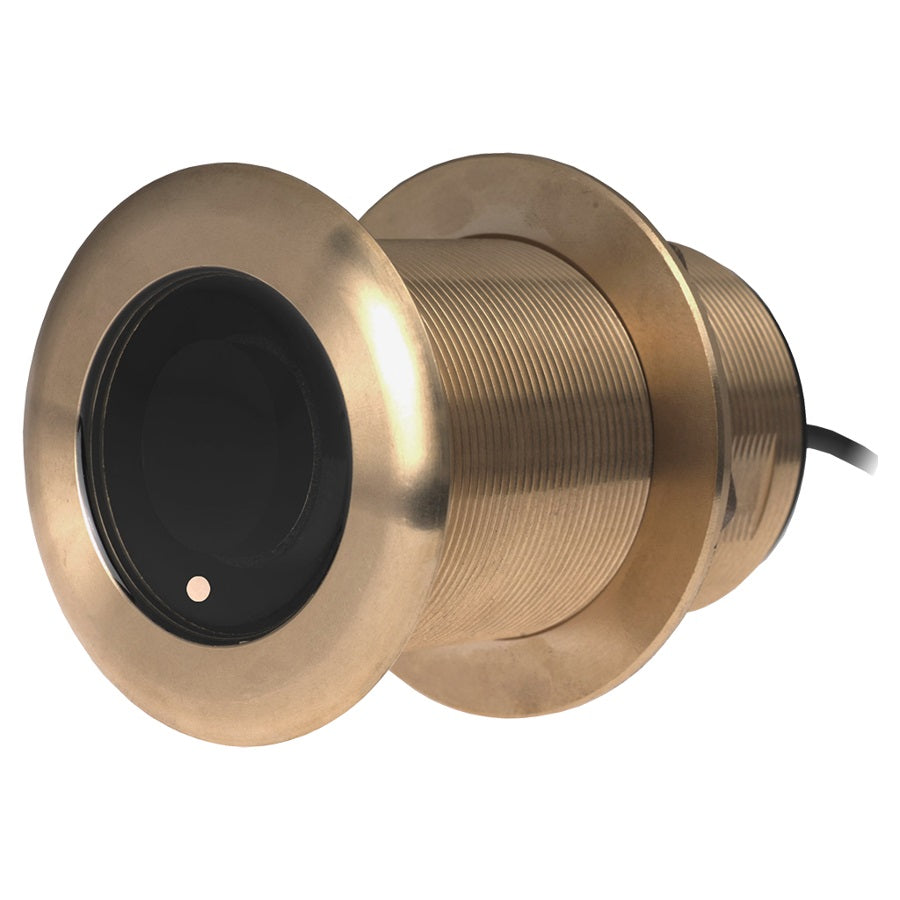

Airmar B60 50/200 Khz 12DEG Tilted Element Garmin 8 Pin

$324.99
by Airmar
Type: Transducer - Thru Hull
 More payment options

Airmar B60 50/200kHz 600 Watt 12 Degree Tilted Element Depth and Temperature with a Garmin 8-Pin

Model: B60-12-8G
  • Depth and fast-response water temperature sensing
  • 600 W of power
  • 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200')
  • 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
  • Perfect for center-console or trailered boats
  • Low-profile bronze housing extends only 5 mm (3/16") outside the hull
  • No effect on your boat’s running performance
  • Bronze housing for fiberglass or wood hull
Specifications
Acoustic Window Urethane
Cable-Length 10 m (33')
Connector Garmin 8-Pin
Conventional Beam 45°/12°
Deadrise Range 8° to 15°
Frequency Band 50/200 kHz
Material Bronze
Max Depth Low frequency- 366 m (1200'), High frequency- 206 m (700')
Tilt Angle 12°
Weight 1.4 kg (3 lb.)
Power Rating 600 W
Functions Depth, Temperature
Hole Size 60 mm (2-3/8")
Usable Shaft Length 68.5 mm (2.70")
