Simrad SS60 20DEG 50/200KHZ 9-PIN Thru Hull

$459.00
by Simrad

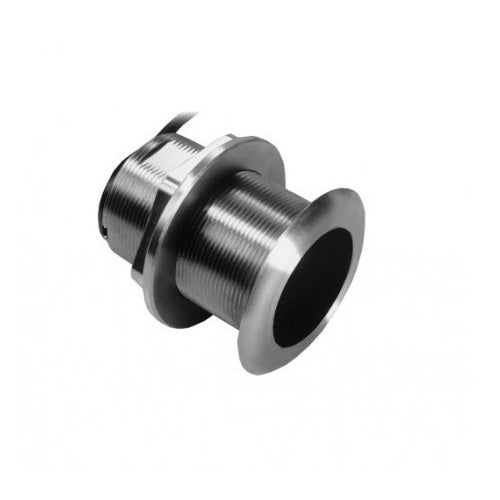

Simrad SS60 Stainless Steel 600 W Thru Hull 50/200 Khz Depth/Temp (20° tilt)

Model: 000-13786-001
  • Calculates how deep the water is, so that you can avoid running aground, whilst also incorporating a temperature sensor for accurate water temperature readings.
  • Works at 50 kHz and 200 kHz for good target detail in shallow water and excellent bottom tracking in deep water.
  • Provides extremely accurate data.
  • The 20° tilt is ideal for boats with a 16° to 24° hull deadrise.
  • The low profile housing minimises drag with just 5mm extending outside of the hull.
  • Easily connect to NSSevo3, Lowrance HDS G3

The SS60 is a stainless steel, thru-hull, tilted, dual-frequency, depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.

Specifications
Frequency 50/200 kHz
Power rating 600 watts
Speed sensor No
Temperature sensor Yes
Mounting style Thru Hull
Elements 1
Beamwidth @ -3db 45 (50 kHz) 12 (200 kHz)
Cable length 10 meters
Connector 9-pin black
