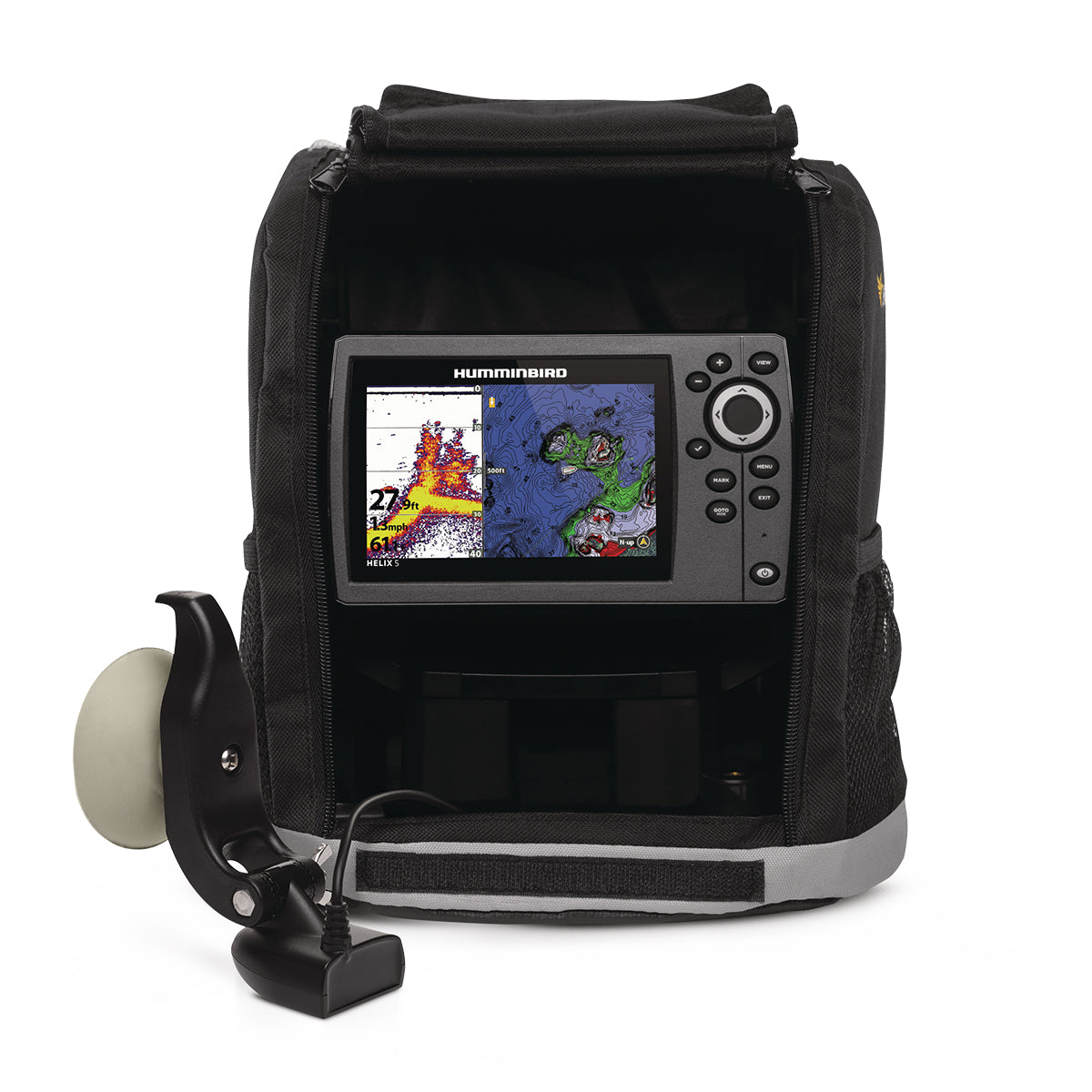

If fishing is in your DNA, there's no such thing as "too early" or "too far." The HELIX? 5 Series answers the call with an uncompromising 5" widescreen, color display. This HELIX 5 CHIRP GPS G3 PT model features Dual Spectrum CHIRP 2D sonar, internal GPS with Humminbird Basemap and AutoChart Live built-in, with additional compatibility for Humminbird and Navionics premium fishing charts. Take all of these features on the go thanks to a portable shuttle, battery, charger and suction cup transducer.
| Display Size - Diagonal |
5" |
| Display Pixel Matrix |
800H x 480V |
| Sonar-Standard |
Dual Spectrum CHIRP |
| Sonar-Coverage |
20°, 42° & 60° @ -10dB |
| Sonar-Optional |
50 kHz, 50/Low Airmar CHIRP |
| CHIRP - Frequencies Supported |
83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz) |
| Sonar-Frequencies Supported |
50/80/200 kHz |
| Depth-Sonar |
1,200 ft (standard transducer), 3,000 ft (optional 50 kHz) |
| Interface |
Keypad Control |
| Features |
Built In GPS, Built In Mapping, Dual Spectrum CHIRP, Portable |
| Memory Card Slot |
Single Micro SD |
| Compatible With |
AIS, AutoPilot, Minn Kota US2 Sonar |
| Power Draw |
615 mA |
| Power Input |
10.8-20 VDC |
| Power Output Peak-to-Peak |
4000 Watts |
| Power Output RMS |
500 Watts |
| Screen Snap Shot |
yes |
| Sonar Recording |
Yes |
| Mount-Standard |
Portable |
| Mount-Optional Size |
7.55" W x 4.28" H x 1.13" D |
| GPS Chartplotting |
Yes |
| GPS Trackplotting |
Yes |
| LakeMaster Compatibility |
Yes |
| Coast Master Compatibility |
yes |
| Navionics Gold/HotMaps Compatibility |
Yes |
| Navionics Platinum + Compatibility |
Yes |
| Platinum Compatibility |
Yes |
| Heading Sensor GPS Compatibility |
No |
| Upgradable Software |
Yes |
| View Preset Keys |
No |
| X-Press Menu System |
Yes |
| Custom Digital Readout |
Yes |
| Custom View Selections |
No |
| Display Colors Grayscale |
16-Bit |
| Display Size |
5" |
| Speed |
GPS Provided |
| Temperature |
Built In |
| Temperature Alarm |
Yes |
| Temperature Graph |
Yes |
| HDMI Compatible |
No |
| MEGA Live Compatibility |
No |
