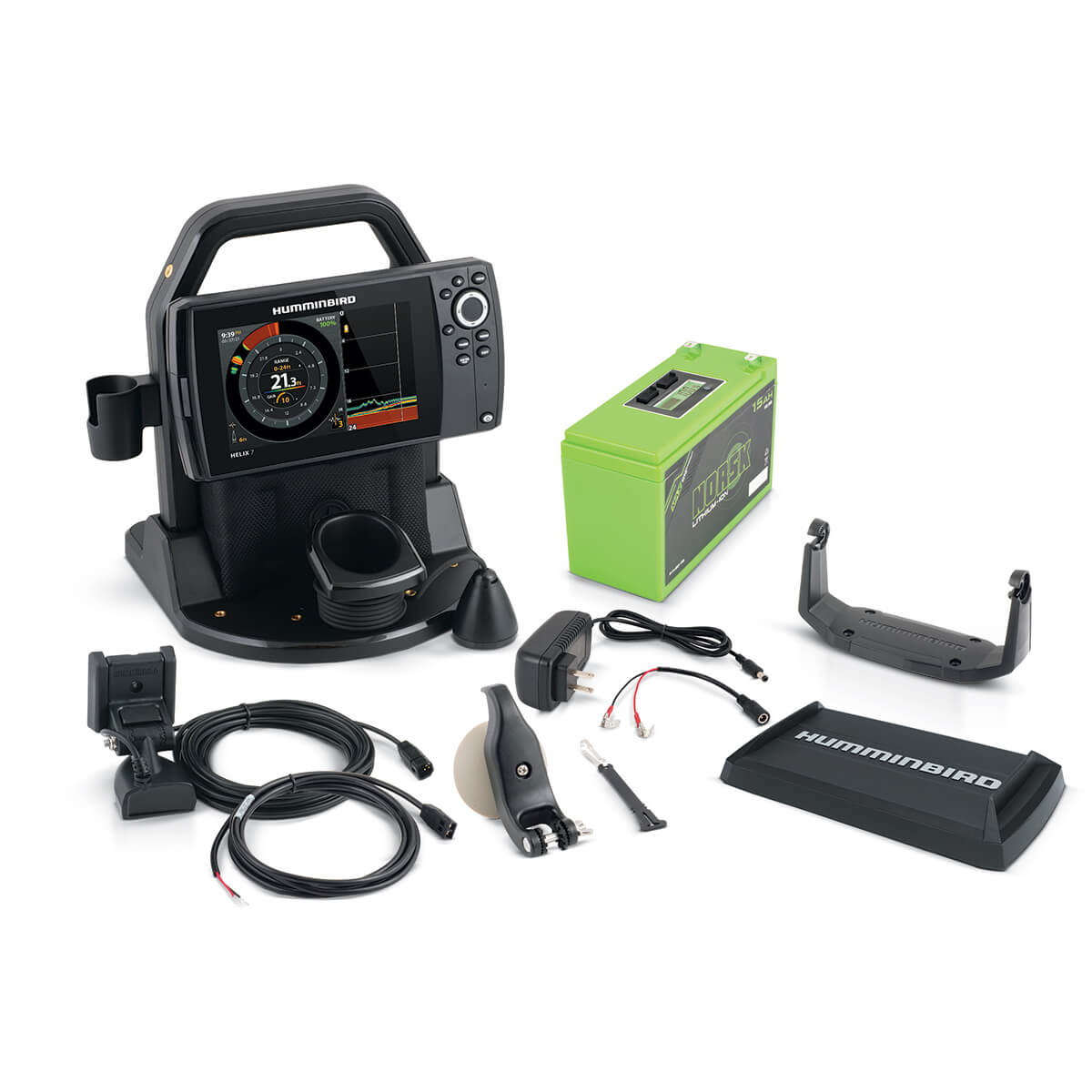

The ICE HELIX 7 CHIRP GPS G4 All Season has more fish finding power than one season can handle. Take advantage of crystal-clear Dual Spectrum CHIRP Sonar with 3/4" target separation, CHIRP Interference Rejection, built-in GPS with Humminbird Basemap and compatibility with both LakeMaster or Navionics maps. Additional features designed specifically for the ICE angler include AutoChart Live ICE, Jig Charge Mode, split-screen views, premium shuttle and 15Ah lithium battery separate this unit from all others on the ICE. And you'll be set once the ICE thaws, because ICE HELIX 7 CHIRP GPS G4 All Season includes everything you need to use it on a boat or in portable applications during the summer. Enjoy it all on a full color, 7" HD LCD display.
Display Size - Diagonal |
7" |
Display Pixel Matrix |
1024H x 600V |
Sonar-Standard |
Dual Spectrum CHIRP |
Sonar-Coverage |
15° & 21° @ -3dB |
Sonar-Optional |
50 kHz, 50/Low Airmar CHIRP |
CHIRP - Frequencies Supported |
50/200 (28-75/130-250 kHz), 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz) |
Sonar-Frequencies Supported |
50/80/200 kHz |
Depth-Sonar |
400 ft |
Interface |
Keypad Control |
Features |
Dual Spectrum CHIRP, Interference Rejection, Jig Charge Mode, Portable, Built In GPS, Built In Mapping, AutoChart Live Ice, MEGA Live Imaging |
Memory Card Slot |
Single Micro SD |
Compatible With |
AIS, AutoPilot |
Power Draw |
800 mA |
Power Input |
10.8-20 VDC |
Power Output Peak-to-Peak |
4000 Watts |
Power Output RMS |
500 Watts |
Screen Snap Shot |
Included |
Sonar Recording |
Included |
Mount-Standard |
Portable |
Transducer Mount Location |
Portable |
GPS Chartplotting |
Included |
GPS Trackplotting |
Included |
LakeMaster Compatibility |
Yes |
Coast Master Compatibility |
Yes |
Navionics Gold/HotMaps Compatibility |
Yes |
Navionics Platinum + Compatibility |
Yes |
Platinum Compatibility |
Yes |
Heading Sensor GPS Compatibility |
Yes |
Upgradable Software |
Yes |
View Preset Keys |
No |
X-Press Menu System |
Yes |
Custom Digital Readout |
Yes |
Custom View Selections |
Yes |
Display Colors Grayscale |
16-Bit |
Speed |
Included |
Temperature |
Built In |
Temperature Alarm |
Yes |
Temperature Graph |
No |
HDMI Compatible |
No |
MEGA Live Compatibility |
No |
