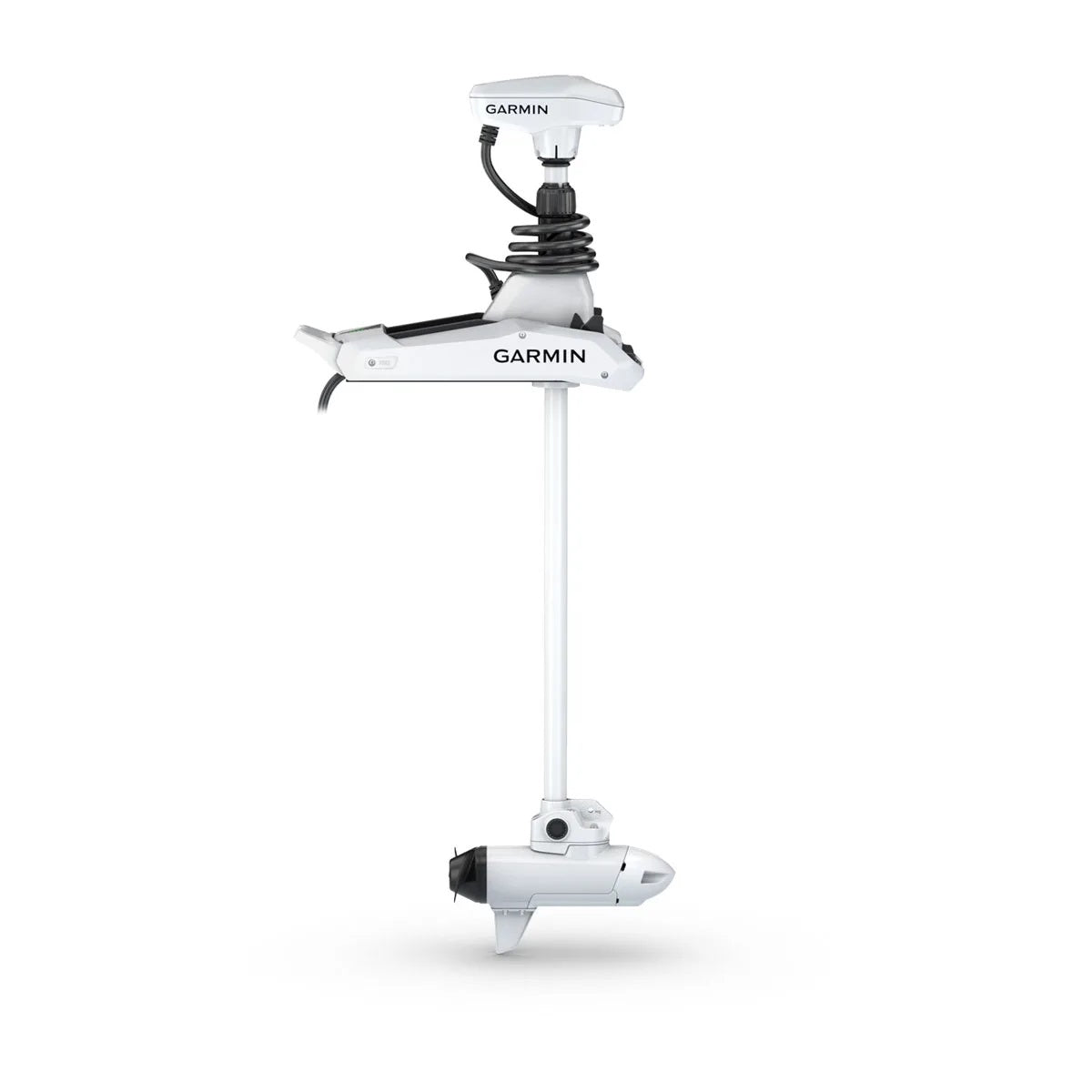

Garmin Force Kraken Trolling Motor White 48" Shaft No Tranducer

$3,799.99
by Garmin
Type: Trolling Motors
 More payment options

Garmin Force Kraken 48" Shaft White Trolling Motor No Transducer

Model: 010-02574-30
  • Most powerful trolling motor on the market with 100 lbs of thrust (in compliance with ISO standard 13342)
  • Anchor lock provides our most precise boat positioning, thanks to multi-band GPS and integrated AHRS for heading hold
  • Wireless integration with Garmin chartplotters allows you to create routes, patterns and tracks for the trolling motor to follow
  • Easy installation where space is limited, thanks to the pivot-style mount
  • Included remote allows you to use point and go (using AHRS) and gesture steering to help you steer the boat without setting the rod down
  • Sturdy composite shaft is built to endure harsh marine environments
  • LiveScope™ live sonar (sold separately) is easy to add; keeps the deck free of clutter and the cable protected by running the transducer cable through the trolling motor shaft
  • Brushless motor is optimized to operate in rough open-water conditions at either 24 or 36 volts, thanks to the powerful and efficient design
  • Clear sonar returns with extremely low levels of unwanted noise
  • Efficient brushless motor design has longer run times than brushed motors and allows you to focus on fishing and not running out of battery
  • Don’t spook the fish; motor is extremely quiet above and below the water
  • Designed for saltwater with advanced corrosion protection

There’s a new legend to behold. Harness the power of the Force® Kraken trolling motor, the most powerful trolling motor on the market (in compliance with ISO standard 13342). It’s designed for deep V hulls and saltwater boats where bow space is limited. Once you’ve found the fish, keep the boat where it belongs with our most precise anchor lock technology. LiveScope™ live sonar (sold separately) is easy to add, thanks to the ability to run the cable through the trolling motor shaft. The sturdy pivot-style mount frees up space on the deck. Draw a route with wireless chartplotter integration, and let the trolling motor automatically navigate the route while you fish. The included remote makes speed and heading adjustments easy from anywhere on the boat. And with advanced corrosion protection, it’s built for oceans and brackish water.

Specifications
General
COLOR white
FOR USE IN freshwater, brackish water and saltwater
MOUNT STYLE pivot-style mount
MAX THRUST 100 lbs per ISO 13342 using high efficiency propeller at 36 V
80 lbs per ISO 13342 using high efficiency propeller at 24 Vdc
VOLTAGE 24V_36V
ELECTRIC STEERING Yes
BUILT-IN HEADING SENSOR Yes
BUILT-IN GPS yes (dual frequency GPS)
WARRANTY 3-year, limited lifetime on shaft
WATER RATING IPX7
MOUNTING LOCATION bow
WIRELESS REMOTE yes (included)
FOOT PEDAL COMPATIBLE yes
BATTERY INDICATOR Yes
VARIABLE SPEED CONTROL yes (20 steps)
LIGHTED DIRECTION INDICATOR Yes
DECK STABILIZER No
QUATIX REMOTE CONTROL SUPPORTED Yes
Sonar Features
LIVESCOPE CABLE INTEGRATION yes (LiveScope transducer and Kraken Mounting Bracket purchases required)
Autopilot Features
ROUTE FOLLOWING Yes
ANCHOR LOCK Yes
ANCHOR LOCK JOG Yes
HEADING HOLD Yes
CRUISE CONTROL Yes
GESTURE FEATURES yes (manual+, heading hold+, jog+)
Foot Pedal Features
DIMENSIONS 12" L x 9" W x 4 1/2" H
WIRELESS COMMUNICATION Yes
POWER INSTALLATION 12V/24V/36V wired or battery powered (2 AA)
AA BATTERY LIFE 1 full season
WATER RATING IPX7
ADJUSTABLE PEDAL RESISTANCE Yes
Remote Features
DISPLAY SIZE 1.2" (30.4 mm) diameter
DISPLAY RESOLUTION 240 x 240 pixels
DISPLAY TYPE color, sunlight-visible, transflective memory-in-pixel (MIP)
CHARTPLOTTER USER-PROGRAMMABLE KEYS Yes
AUTOPILOT FEATURE CONTROL Yes
WATER RATING IPX7
BATTERY LIFE typical use with backlight at low, 43 weeks
FLOATS Yes

What's in the Box:
  • 48" White Shaft Force Kraken Motor
  • Remote Control
  • High-efficiency Propeller
  • Assembly and Mounting Hardware
  • Documentation
