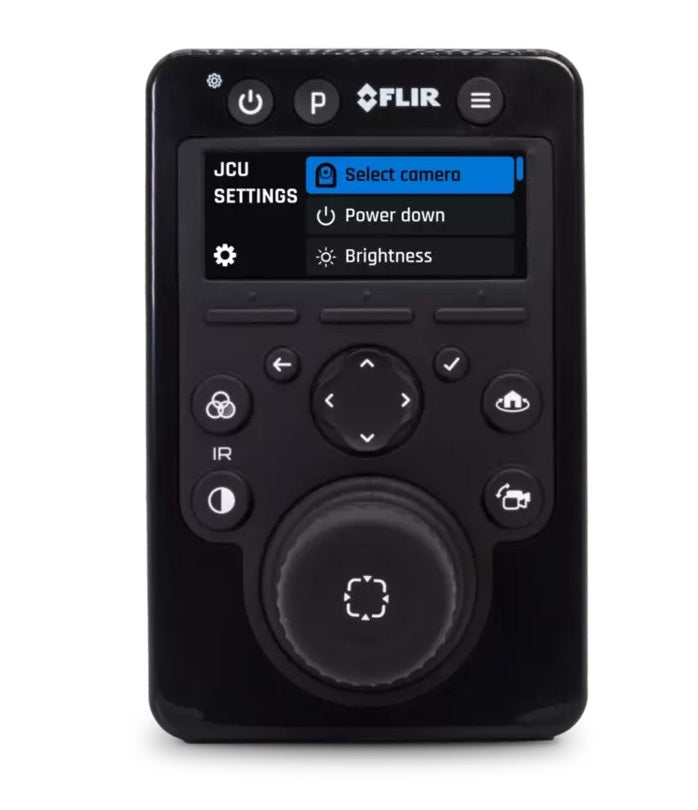

FLIR JCU-4 remote Joystick Controller with Accessories
Model: E70695
- Rugged, low profile 3-axis joystick for precision camera control in all conditions
- The 2.9" color LCD and keypad simplify camera operation and offer easy access to the joystick setup menus
- Dimmable color LCD and back lit keypad preserves the operator’s vision during nighttime operations
- 3 custom keys for quick access to user-defined camera functions.
- Pair the JCU-4 with a FLIR marine camera and marine monitor to create a complete camera viewing and control solution
- Add the JCU-4 to an integrated chartplotter and camera system for a dedicated tactile camera control alternative.
The JCU-4 provides confident control of FLIR marine thermal and visible cameras. Pan, tilt, zoom, and control all the camera functions with JCU-4’s ergonomic keypad and responsive joystick control. Our premier FLIR joystick controller, the JCU-4 pairs seamlessly with FLIR marine thermal cameras and provides the operator a dedicated tactile camera control solution.
Designed by mariners, for mariners the JCU-4 is perfect for those who actively navigate using thermal technology and require dependable and intuitive control of their FLIR camera.
Specifications
Physical |
Width |
93.66 mm (3.69 in) |
Height |
146.66 mm (5.77 in) |
Depth |
63.36 mm (2.49 in) |
Depth (including joystick) |
113.30 mm (4.46 in) |
Power |
PoE class |
Class 2 |
Nominal supply voltage |
PoE: 48 V dc Alternate power: 12 V / 24 V dc |
Operating voltage range |
PoE: 44 V to 57 V dc Alternate power: 8 V to 32 V dc |
Power consumption |
5 W Max with full keypad illumination |
Network |
Network connection ports |
1x 10/100/1000 Mbits/s RayNet (Ethernet) 1x 10/100/1000 Mbits/s PoE RayNet (Ethernet) |
Display |
LCD Size |
2.9" |
LCD Type |
IPS TFT LCD |
Active area |
26.51 mm x 67.68 mm |
Brightness / Luminance |
600 nits / 600 cd/m2 |
Viewing angles |
80 + / 80 + |
Resolution |
376 (H) x 960 (W) pixels (RBG) |
Contrast ratio |
1:1500 |
Environmental |
Operating temperature |
-25 C to +55 C (-13 F to 131 F) |
Storage temperature |
-30 C to +70 C (-22 F to 158 F) |
Relative humidity |
Maximum 93% @ + 40 °C (104 °F) |
Waterproof rating |
IPx6 |
What's in the Box:
- JCU-4 (includes 4x screws and 4x mounting plates pre-fitted).
- Front cover.
- Weather cover.
- Documentation pack.
- Right-angled RayNet (Ethernet) to RJ45 adapter cable, 3 m (9.84 ft).
- Right-angled 3-pin power cable, 3 m (9.84 ft).
