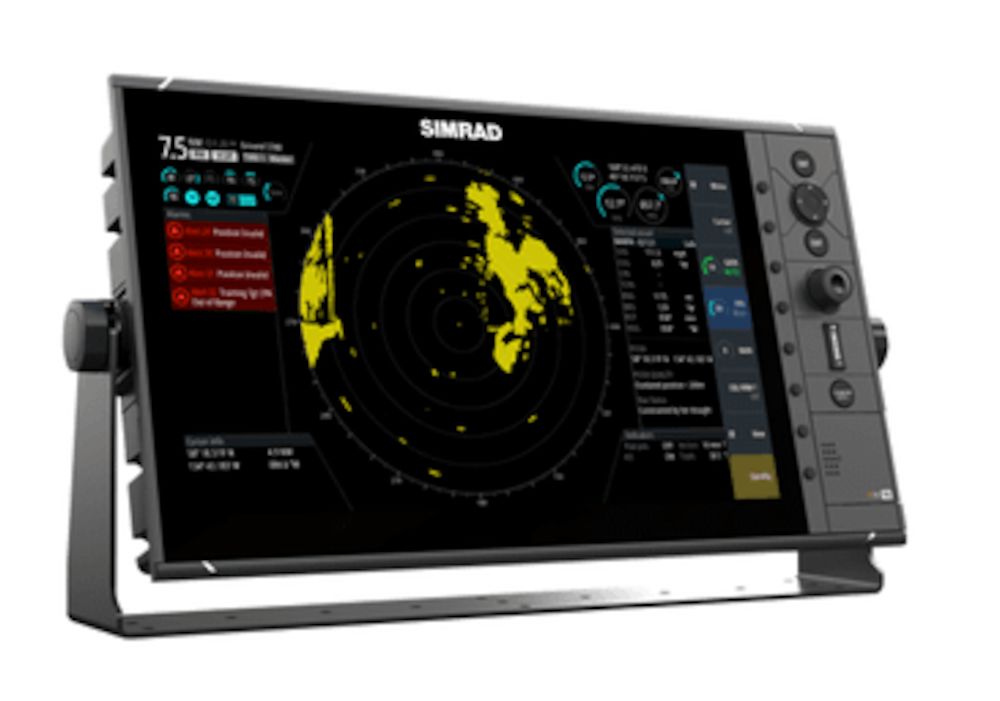

Simrad R3016 16" Radar Control Unit
Model: 000-12188-001
- 16-inch HD widescreen display
- HDMI output for an optional duplicate display
- Anti-sea-clutter technology for optimal clarity in adverse conditions
- MARPA target tracking
- Keypad and rotary-dial interface with 8 direct-access menu keys
- Bracket and flush-mount installation options
Make the most of your Simrad radar system by adding a dedicated screen and controls. Our professional-grade radar control units are easy to use, and designed to complement the design of our glass bridge displays and instruments. The R3016 features a high-definition, 16-inch widescreen display for a large and clear radar picture. Easily navigate crowded marinas and waterways, search for birds to find your next fishing spot, or keep a watchful eye on far-off weather cells. Choose from a clean flush-mount installation, or the convenience of bracket mounting to install almost anywhere.
Take control of your radar system with the integrated keypad and rotary dial. Direct-access menu keys beside the display operate the corresponding on-screen menu options, for quick and intuitive access to key settings and features. Large, reliable buttons are suitable for use in any conditions, including the sort of wet weather and rough seas that make your radar system even more crucial to a safe journey home. Anti-sea clutter technology helps to deliver clarity in those adverse conditions, giving you the best possible view.
The R3016 is compatible with a wide range of Simrad radar solutions. Ethernet connectivity offers easy installation, and simple networking of multiple control units and radar systems. The R3016 also provides four NMEA 0183® ports and NMEA 2000® connectivity for compatible devices such as heading and speed sensors, AIS transceivers, and GPS receivers. Connect a Simrad marine monitor or other compatible display to the R3016’s HDMI output to create a secondary radar display, mirroring the built-in screen. Add a Simrad O2000 wired remote to make that second screen interactive, an ideal solution for dual-helm vessels.
Specifications
| Display Size |
16-inch widescreen |
| Screen Brightness |
300 cd/m2 |
| Networking Capability |
4x NMEA0183, 1x NMEA2000, 1x Ethernet |
| Video Integration |
1x HDMI output (Supported resolutions: 1366x768) |
| Display Resolution [pixels & pixels] |
1366 x 768 |
| Display Type |
16-inch LED-backlit Colour TFT LCD |
| Input Voltage |
12-24 V DC |
| Input Draw |
20 Watts |
| Dimensions |
17.93" W x 2.4" D x 10.24" H |
What's in the Box:
- R3016 Display
- Power cable
- Bezel Edge Assembly
