Simrad NAC-3 VRF Core Pack Virtual Rudder Feedback

$2,169.00
by Simrad
Type: Autopilot - Accessories
 More payment options

Simrad NAC-3 VRF High-current Core Pack

Model: 000-13338-001
UPC: 9420024155660

NAC-3 VRF Core Pack: Comprising of the high-current NAC-3 autopilot computer and Precision-9 compass.

The NAC-3 Autopilot Computer is the brains behind your autopilot system. NAC-3 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10 metres (33 feet) or greater in length and is rated to operate high-current hydraulic drives, mechanical drive units, and solenoid valves with a current rating of 30 Amps continuous (50 Amps peak).

Specifications
Operating temperature 0 to +55°C
protection IPX7
Electrical
Power supply 12/24vDC
Reversible motor control of rudder Max continious load 30A, peak 50A for 1s
On/off solenoid control of rudder 12/24V DC, common, load range 10mA to 10A, off current <1mA
Engage output for bypass/clutch 12/24V DC, min 10mA, max 3A
NFU port/stbd input and mode indicator output External open/close contact, common ret, contact current max 30mA
Mode input External open/close or pulse contact for SYSTEM SELECT, common ret, close to activate, contact current max 30mA
External alarm output for buzzer/relay Max 100mA, voltage level as local supply
Networking
NMEA 0183 1 in 1 out
NMEA 2000 1 Micro C

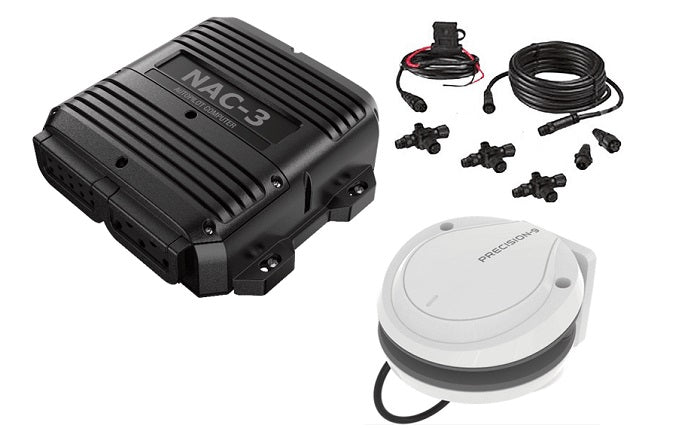

What's in the Box:
  • NAC-3 Autopilot Computer
  • PRECISION-9 COMPASS
  • N2k Backbone Starter Kit
