Navico StructureScan 3D Thru Hull with LH Chirp and StructureScan 3D 00014254001

Navico StructureScan 3D Thru Hull with L/H Chirp and StructureScan 3D [000-14254-001]

$1,611.00
by Navico
Type: Transducers

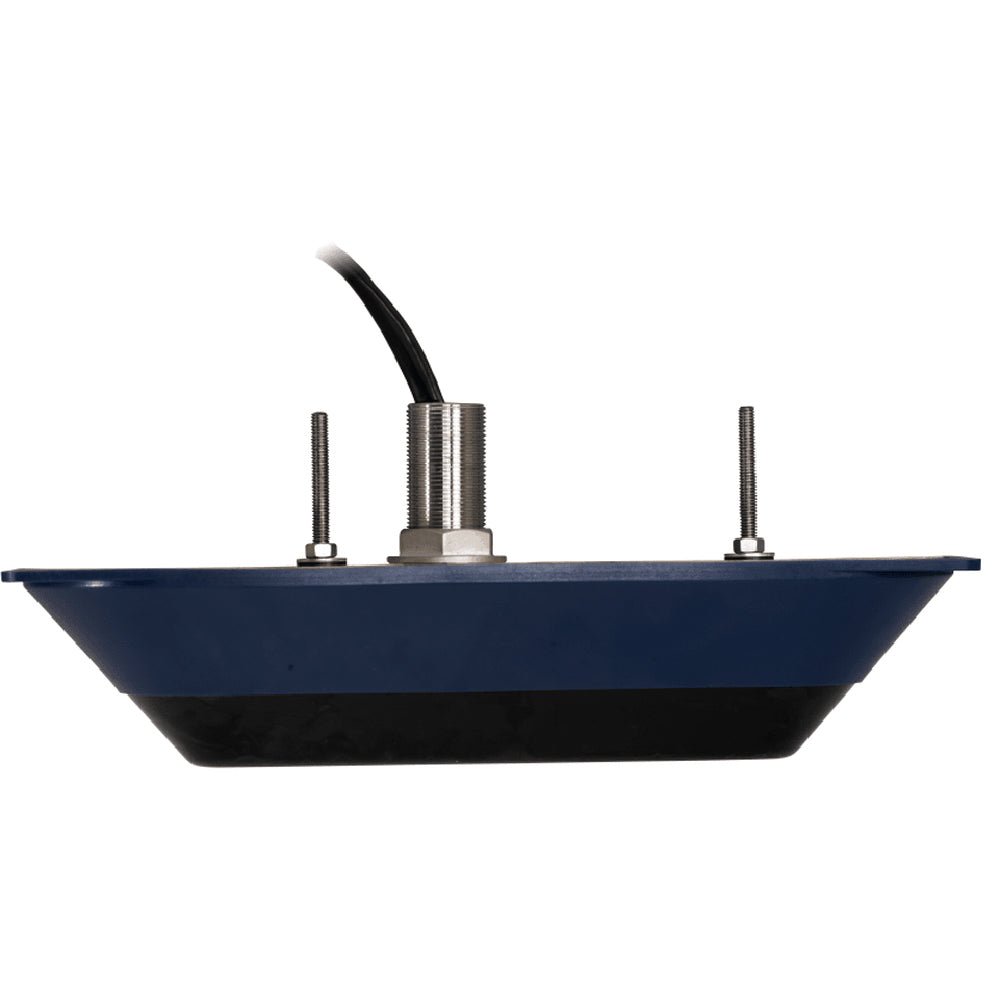

StructureScan 3D Thru Hull with L/H Chirp and StructureScan 3D

StructureScan 3D thru hull transducer with Low and High CHIRP. Single transducer for flat to hull mounting or fits deadrises up to 5 degrees with fairing block.

StructureScan 3D connectors connect to a StructureScan 3D module, CHIRP connector includes XID in the 9 pin connector and connects directly to the MFD.

Specifications:

  • Temperature: Yes
  • Speed Included: No
  • Pins: 9 & 12
  • Mounting Style: Thru-Hull
  • Imaging: Standard/Down/Side
  • Chirp: Low/High
  • Cable Length (Feet): 25'
  • Box Dimensions: 7"H x 11"W x 19"L WT: 10.45 lbs
  • UPC: 9420024169346
