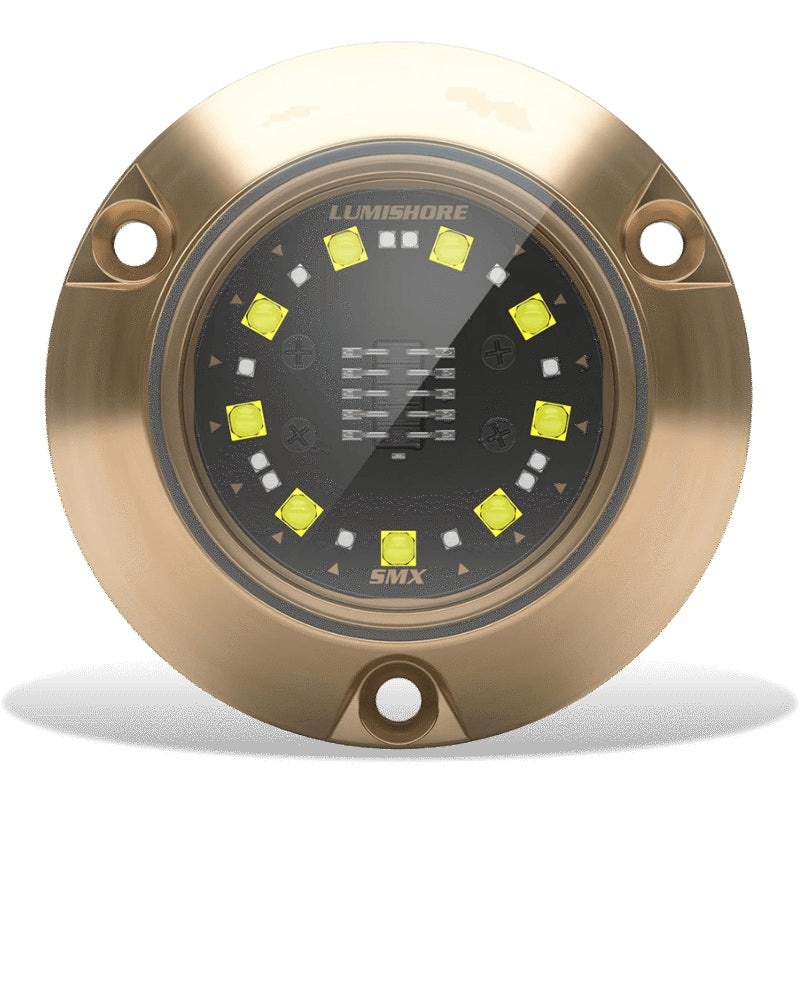

Lumishore ECLIPSE SMX24 Surface Mount Blue LED
Model: 60-0531 / 010-04501-00
Specifically designed for smaller boats, the SMX24 - Blue offers unmatched light output and optics for a light of its compact size. Flooding the water with 3,100 fixture lumens of light in a 90° beam.
It's built-in driver and simple 2-wire connections make the installation of this light easier than ever.
Suitable for stepped hulls, transoms, and hull side installations.
Controlled by an ON/OFF switch or the ECLIPSE Command Center.
Specifications
| COLOR |
BLUE |
| LUMENS |
6,975 |
| VERIFIED FIXTURE LUMENS (WHITE) |
3,100 |
| NUMBER AND TYPE OF LEDS |
BLUE 12X3W |
| LED POWER - HICOB ARRAY |
YES |
| TYPICAL LED LIFE |
50,000+ HOURS |
| BEAM ANGLE (DEGREES) |
90° |
| DRIVER |
MULTI-CHANNEL INTERNAL DRIVER |
| SUPPLY VOLTAGE (12 V DC ONLY) |
10.5—14.5 V DC |
| MAX CURRENT DRAW |
2.5A |
| HOUSING TYPE |
MARINE BRONZE BODY/ GLASS LENS |
| USER CONTROL OPTIONS |
STANDARD ON/OFF SWITCH OR ECLIPSE COMMAND CENTER |
| DIMMING CONTROL |
YES |
