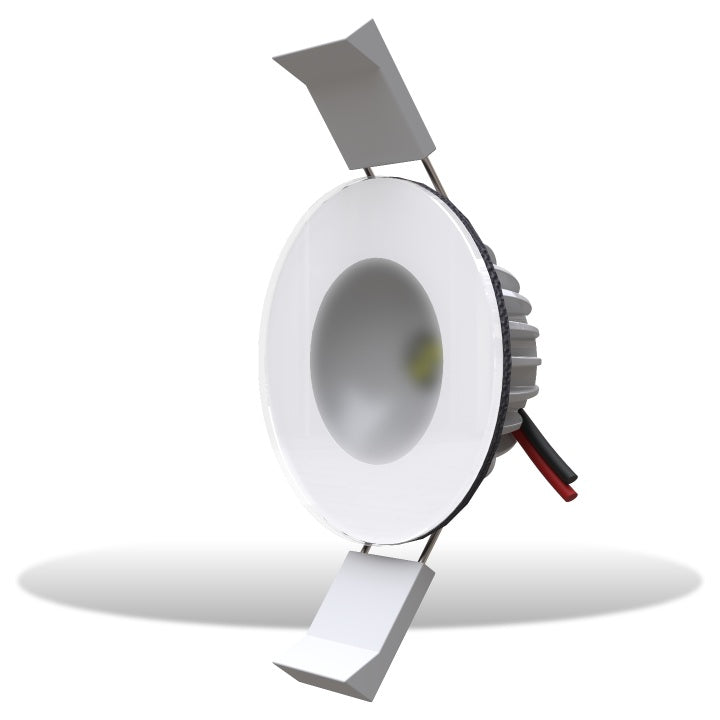

Lumishore Eclipse DL55 Blue & White Down Light 12/24vDC White Housing
Model: 010-04475-00
Lumishore’s ECLIPSE Downlights provide excellent illumination to enhance a variety of indoor or outdoor overhead spaces onboard.
Constructed of a durable aluminium body with a glass front, completely water sealed and IP67 rated.
Simple to install (2 wire hookup) with a shallow depth profile of only 21mm (0.83").
Available in dual color blue and white, single color blue or white, and White + RGB. Choose from a black or white finish to complement your boats aesthetic.
Specifications
| Colors |
Blue & White (5000 K) |
| LED Type |
2 x 3W Blue LEDs / 2 x 3W White LEDs |
| Customer Control Options |
On/Off Switch or ECLIPSE Command Center |
| Electrical Installation |
Simple 2 Wire Installation |
| Supply Voltage Range |
12V DC Only (10 - 15V DC) |
| Max Current Draw (12/24V DC) |
0.4A |
| Ingress Protection |
IP67 |
| Front Diamater (Bezel) |
64.0mm (2.519") |
| Profile |
3.5mm (0.137") |
| Hole Diameter for fitting |
50.8mm (2.0") |
| Mechanical Installation |
Stainless Steel Spring Clips |
| Warranty |
3 Years |
