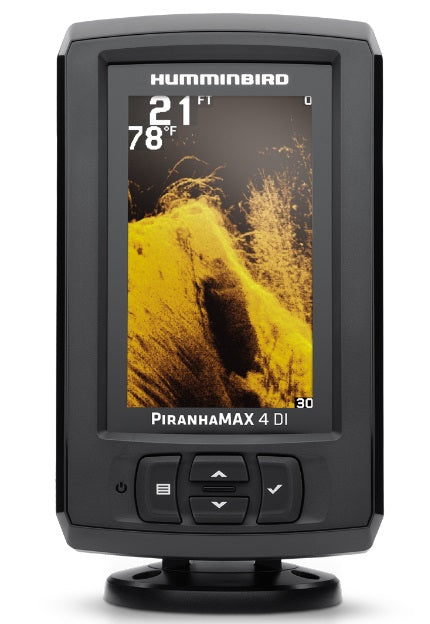

Humminbird Piranhamax 4DI
Model: 410160-1
UPC: 082324048739
- Down Imaging Sonar -- Get a fish-eye's view of what's happening below your boat. Incredible images are created with High-frequency sound waves.
The PiranhaMAX 4 DI features a 256 color 480V X 272H, 4.3" display with 2400 watts PTP power output with Down Imaging sonar.
Specifications
| Display Size |
4.3 in |
| Display pixel matrix |
480 x 272 |
| Display type |
Color TFT |
| Display colors grayscale |
256 Colors |
| Standard sonar |
Down Imaging/Dual Beam |
| Standard sonar coverage |
28°, 16° & 75° @ -10db |
| Standard sonar frequency |
200/455/455 kHz |
| Target separation |
2.5 in |
| Power output RMS |
300 watts |
| Power output peak to peak |
2400 watts |
| Depth capability |
600 ft |
| Temperature |
Built-in transducer |
| Speed |
No |
| Backlight |
Yes |
| Input Voltage |
10.8-20 VDC |
| Input Draw |
180 mA |
| Dimensions |
Gimbal Mount:3.914"W x 7.335"H x 3.621"D
In Dash Unit Size2:3.914"W x 6.770"H x 2.600"D |
What's in the Box:
- Piranhamax 4DI
- XNT 9 DI T
- Bracket
- Powercord
- Documentation
