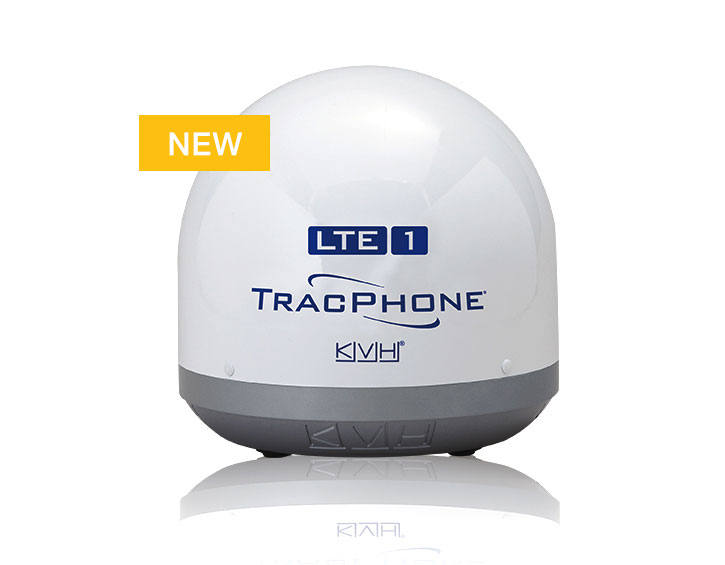

KVH Tracphone LTE-1 Global Global System

$1,784.00
by KVH

KVH TracPhone LTE-1 Global

Model: 01-0419-01
  • Blazing fast onboard connections with no throttling thanks to LTE Advanced (LTE-A) enhanced technology
  • High-gain, dual antenna for higher speeds and service up to twice as far offshore than with a personal cell phone
  • A worldwide $99/month data plan with overage at the same reasonable prices per GB (per GB price varies by country)
  • Customizable email usage alerts
  • Ease of an end-to-end solution from the world’s leader in maritime broadband solutions
  • Supports Wi-Fi calling for voice service on your cell phone farther offshore*
  • Seamless service from regional and local LTE cellular services around the globe

TracPhone® LTE-1 Global is an ultra-compact, marine-grade system that includes everything you and your business need to head offshore. With simple plug-and-play installation and operation, the TracPhone LTE-1 Global provides secure Wi-Fi built into the antenna, multi-device connectivity, and easy network management. TracPhone LTE-1 Global simply gives your crew and business more of what you need:

TracPhone LTE-1 Global is an ultra-compact, marine-grade system that includes a high-gain, dual LTE-A antenna array, modem, GPS, and Wi-Fi router in the dome.

The TracPhone LTE-1 Global offers broadband connectivity as far as 32+ km (20+ miles) offshore. LTE coverage is available in more than 150 countries with more than 150 carriers.*

TracPhone LTE-1 Global offers easy access to the built-in Wi-Fi router to configure the Wi-Fi network and the system's IP-address.

Specifications
Service
Network LTE-A/LTE/HSPA+/3G
Antenna Type 2x2 MIMO/High-gain diversity antennas
Wi-Fi Type and Output IEEE 802.11n/g Wi-Fi; 72 Mbps max
Maximum Network Speed LTE-A (where available)
Service Coverage Area Worldwide (see kvh.com/LTEglobalzones for available countries) More than 32+ km (20+ miles) from nearest tower when mounted >6 m (20 ft) above waterline with unobstructed line-of-sight
Hardware
Antenna Diameter x Height 34.3 cm x 33.8 cm (13.5" x 13.3")
Antenna Weight 2.8 kg (6.25 lbs)
Antenna Operating Temperature -25°C to +55°C (-13°F to +131°F)
Antenna Survival Temperature -25°C to +70°C (-13°F to +158°F)
System Power 9-36 VDC, 4 watts nominal, 12 watts max
Cabling 1 Power/data cable: Cat 6 double shielded 15 m (50') cable included
Belowdecks Equipment Power-over-Ethernet (PoE) Injector w/ 3 m (10') power cable and built-in Ethernet output port
Belowdecks Equipment Length x Width x Height 9.7 cm x 7.9 cm x 3.6 cm (3.8" x 3.1" x 1.4")
Belowdecks Equipment Weight 0.14 kg (0.3 lbs)

What's in the Box:
  • LTE-1 Global Antenna
  • POE Injector
  • 10 ft (3 m) power cable
  • 50 ft (15 m) Ethernet cable
  • 10 ft (3 m) ground wire
  • Hardware
  • Documentation
