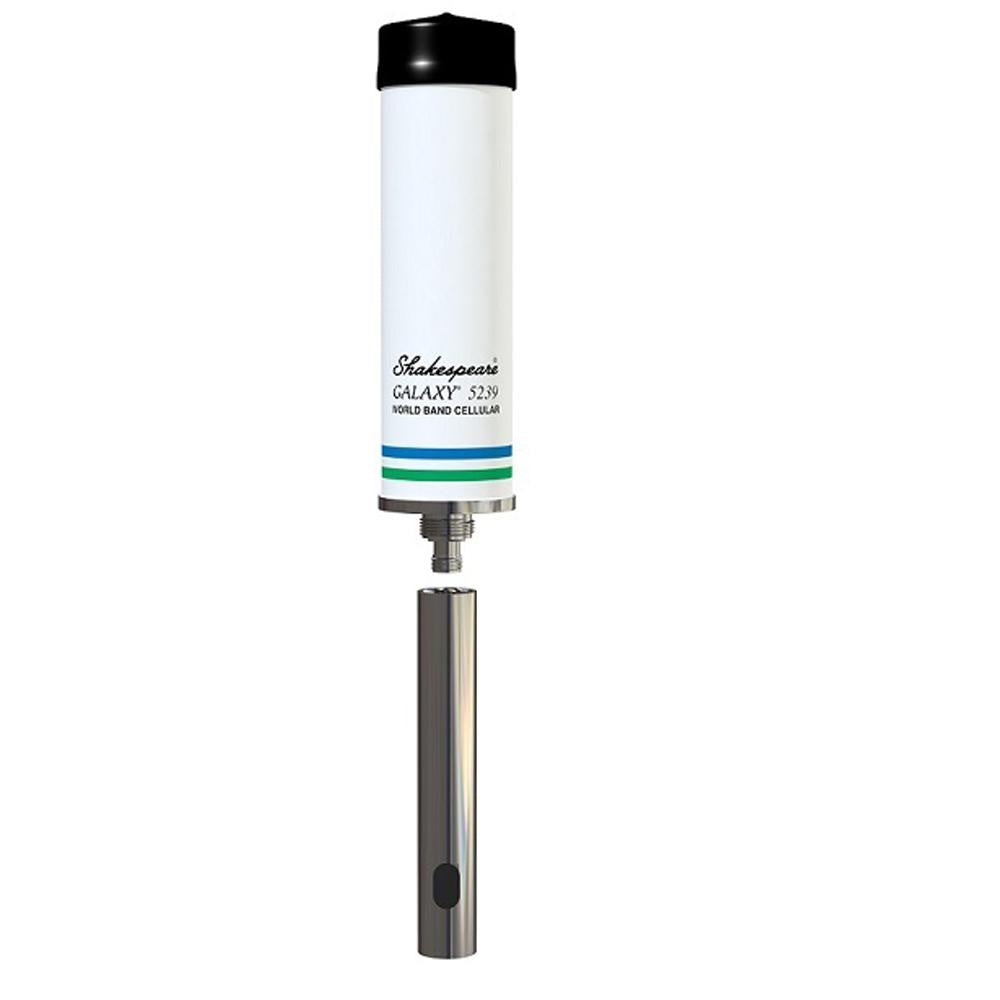

Shakespeare 5239 9.25" Galaxy World Band Cellular Antenna
Model: 5239
UPC: 719441900960
- Full Band (698 — 2700 MHz) Broadband
- 2G/3G/4G and WLAN systems
- Wi-Fi 802.11n compatible
- Designed for marine use
- Omni-directional antenna 3-4 dB Gain
- Easy to install
The Galaxy 5239 antenna is our smallest Galaxy antenna, but don’t let the size fool you. This World-band antenna provides coverage for 2G/3G/4G and WLAN systems for Cellular, PCS, AWS and LTE frequencies, as well as 802.11n Wi-Fi. This compact, feature rich antenna is at home on virtually any watercraft, and is fitted with a stainless steel ferrule and N-connector that are compatible with nearly all Shakespeare 1" -14 threaded mounts.
Specifications
| Frequency |
698-960 / 1700-2700 MHz |
| Input Impedence |
50 ohm |
| Antenna Gain |
2-3dB @ 698-960 / 3-4dB @ 1700-2700 MHz |
| VSWR |
? 1.8 |
| Power Rating (W) |
10 |
| Polarization Type |
Vertical |
| Radiation |
Omni-directional |
| Maximum Power (W) |
100 |
| Connector Type |
N-female |
| Operating Temperature (F) |
-22° to +176° |
| Mounting |
1 in x 14 thread mount |
| Ground Plane |
Internal |
| Material |
Fiberglass |
| Dimensions |
9.25" H x 2.625" D |
