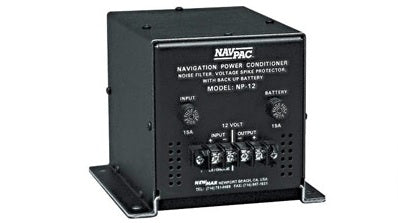

Newmar Nav-Pac 12v DC UPS
Model: NP-12
- Prevents voltage "drop-out" during engine start and/or other high intermittent loads such as Thrusters
- Absorbs line "spikes"
- Filters out electrical interference
- Provides supplemental voltage/battery back-up for up to 15 min.
Marine communication/navigation electronics such as programmable data transceivers, GPS and other microprocessor-controlled devices require clean and steady DC input power. Their sensitive circuitry is highly vulnerable to voltage drop from engine start, noise and line spikes from alternators and motors, and conducted noise from various other electronic devices. NAV-PAC prevents these conditions from affecting electronics.
Specifications
| Output |
12 Volt @ 20 amps max. |
| Dimensions |
5.25? x 6.2? x 7.4? |
| Battery |
| Type |
Sealed Rechargeable 5.0 Amp-Hour |
| Life |
5-7 years |
| Noise Filtering |
Audio through 200 MHZ |
| Voltage Spike Protection |
Transient energy capability; 100 Joules, 4,000 amps Max (8 x 20 micro seconds) |
| Back up Power @ 12v |
| 8A Draw |
15 Minutes |
| 12A |
8 Minutes |
| 18A |
2 Minutes |
| 20A |
1 Minute |
