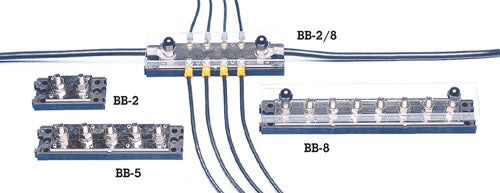

Ideal as a DC ground tie point or positive bus, these heavy duty, 500 amp rated bus bar assemblies feature 5/16" studs on 1" centers in 1/4" thick copper bar for common connection/distribution of large wire gauges and accommodate 5/16" ring terminals.
One combination model features two 5/16" studs and eight #8 screws, accommodating multiple size wire terminals.
All bus material is nickel-plated copper.
A clear insulating protective cover is provided to prevent short circuits and provide visibility of lugs.
The mounting bases are keyed for interlocking and may be mated with the terminal strips (described above). Conductive parts are captured and recessed away from the mounting surface. Use #8 or #10 screws for mounting.
