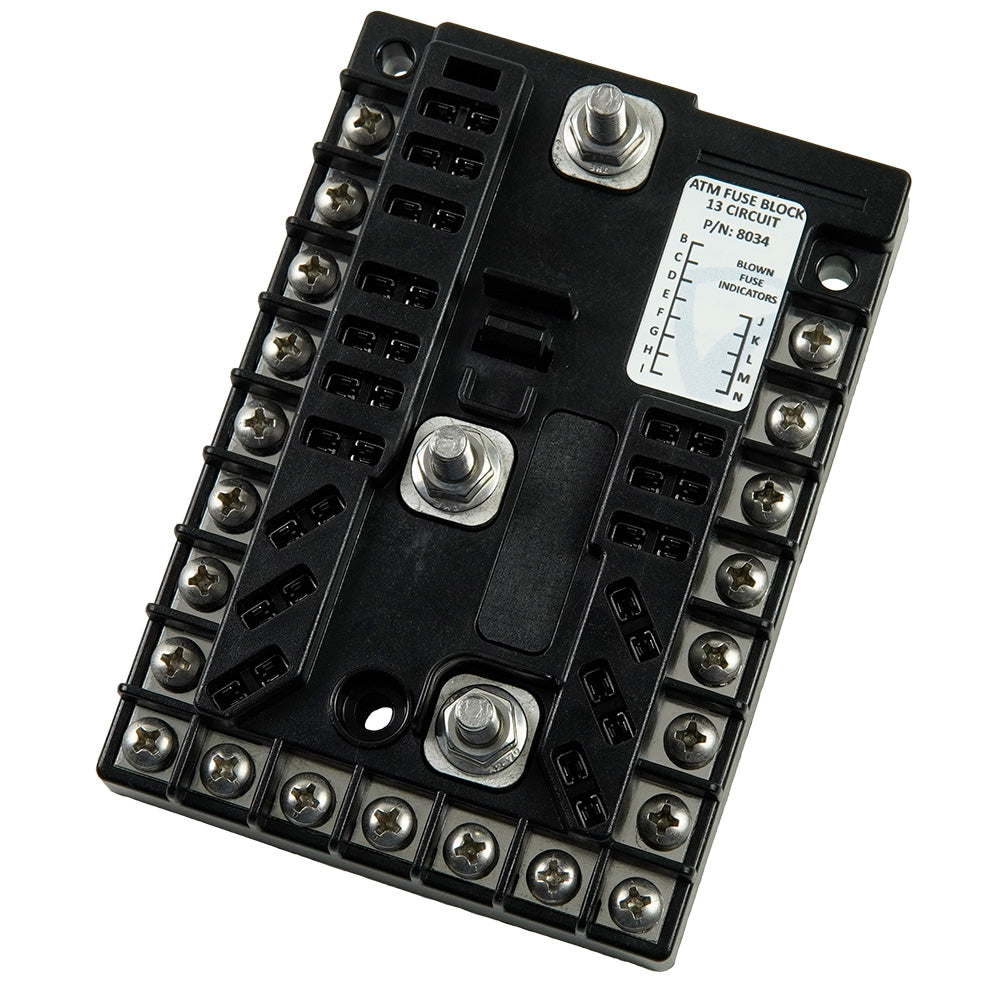

Egis Fuse Block 13 Circuit Ground 200A PDM14 8034

Egis Fuse Block 13 Circuit + Ground 200A PDM-14 [8034]

$91.30
by Egis Mobile Electric
Type: Fuse Blocks & Fuses

Fuse Block 13 Circuit + Ground 200A PDM-14

Features:

  • Compact Solution Combines Circuit Protection And Ground Return Buss Into One Installer-Friendly Device.
  • 200A Maximum Continuous Current
  • Three (3) Fused High-Amp (1-50A) Outputs
  • Allow Protection Of All Circuits with One Solution.
  • Stainless Steel Self-Locking Hardware
  • Expandable Up to 31 Fused Outputs with RT or CT series Fuse Blocks
  • Integrated LED blown fuse indicators

Specifications:

  • Amperage: 200
  • Type: Fuse Blocks
  • Box Dimensions: 3"H x 6"W x 7"L WT: 0.89 lbs
  • UPC: 850074331780
