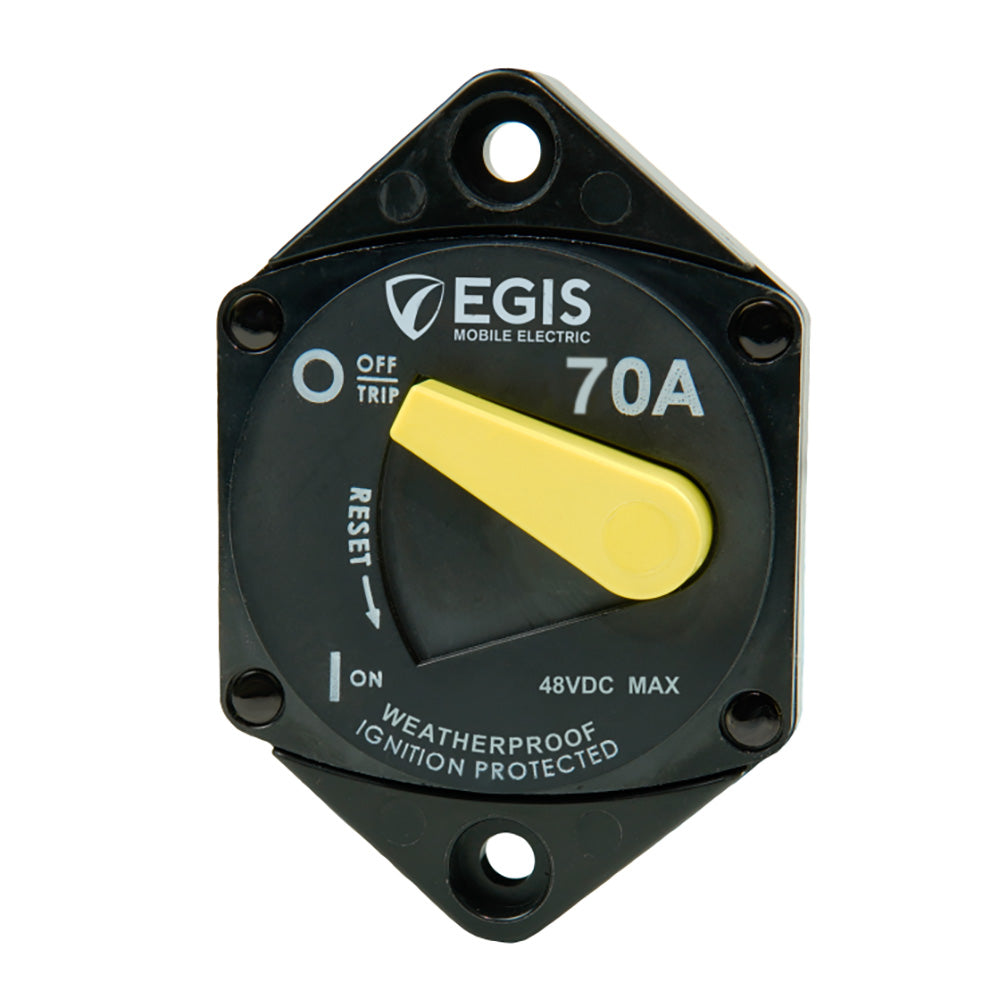

Egis 70A Circuit Breaker - 87 Series - Panel Mount [4707-070]

70A Circuit Breaker - 87 Series - Panel Mount

Features:

• Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation.
• High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications.
• High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current.
• High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power.
• Ignition-protected safe for installation in closed compartments with potential explosive gases.
• Harsh Environment design with stainless-steel hardware, serrated flange nuts, and silicone terminal covers.

Specifications:

• Amperage: 70a
• Box Dimensions: 3"H x 5"W x 6"L WT: 0.46 lbs
• UPC: 850053879050
