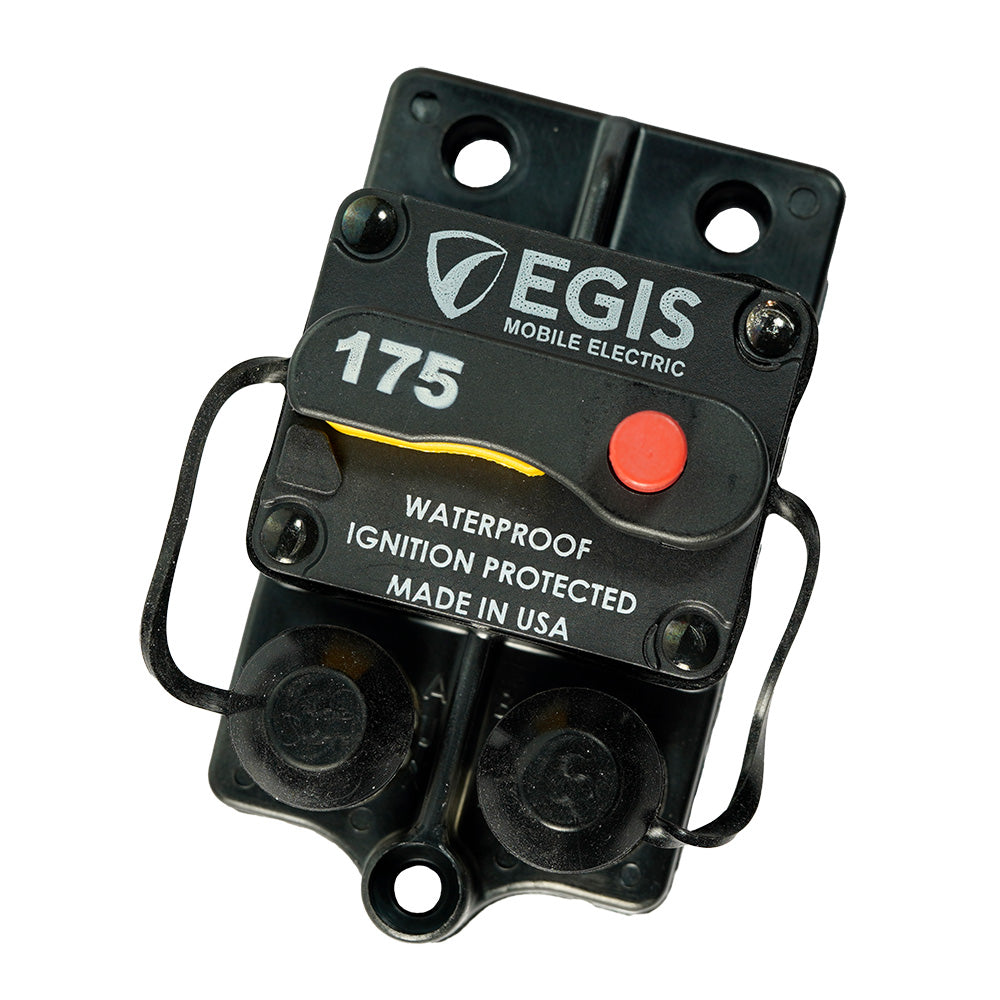

Egis 175A Circuit Breaker 85 Series Surface Mount 4709175

Egis 175A Circuit Breaker - 85 Series - Surface Mount [4709-175]

$60.40
by Egis Mobile Electric
Type: Circuit Breakers

175A Circuit Breaker - 85 Series - Surface Mount

Features:

  • Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation.
  •  Up to 30 Volt-rated easily supports 12 Vdc (200 & 250 A) and 24 Vdc (200 A) applications.
  • High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power.
  • Ignition-protected safe for installation in closed compartments with potential explosive gases.
  • Harsh Environment design with stainless steel hardware, serrated flange nuts, and silicone terminal covers.

Specifications:

  • Amperage: 175a
  • Box Dimensions: 3"H x 5"W x 6"L WT: 0.46 lbs
  • UPC: 850035199688

Brochure (pdf)
