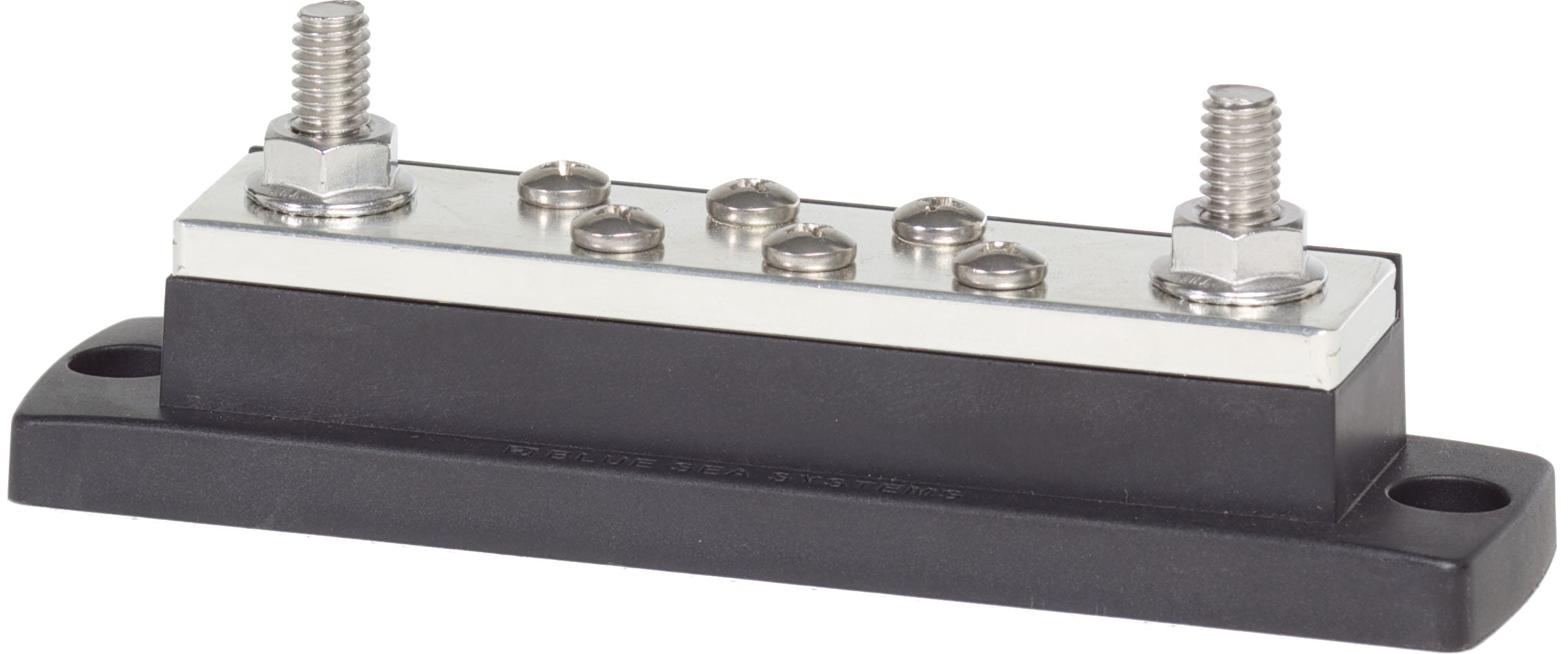

Blue Sea MaxiBus 250A BusBar Two 5/16"-18 Studs and Six #10-24 Screws

$66.86
by Blue Sea Systems
Type: Installation Accesories

Blue Sea Systems MaxiBus 250A BusBar - Two 5/16"-18 Studs and Six #10-24 Screws

Model: 2128-BSS
  • Insert molded stainless steel studs eliminate need for securing nut and allow high torquing for excellent electrical contact
  • Raised bus provides easy access to multiple wires on a single stud
  • UL 94-V0 rated base material resists high heat
  • Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces
Specifications
Maximum Voltage 300V AC, 48V DC
Number of Screw Terminals 6
Number of Terminal Studs 2
Terminal Type #10-24 Screw, 5/16"-18 Stud
Continuous Rating 250A
Base Material UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material Tin-Plated Copper CDA 110 / UNS 11000
Recommended Screw Torque 23 in-lb (2.6 N m)
Recommended Stud Torque 132 in-lb (14.91 N m)
