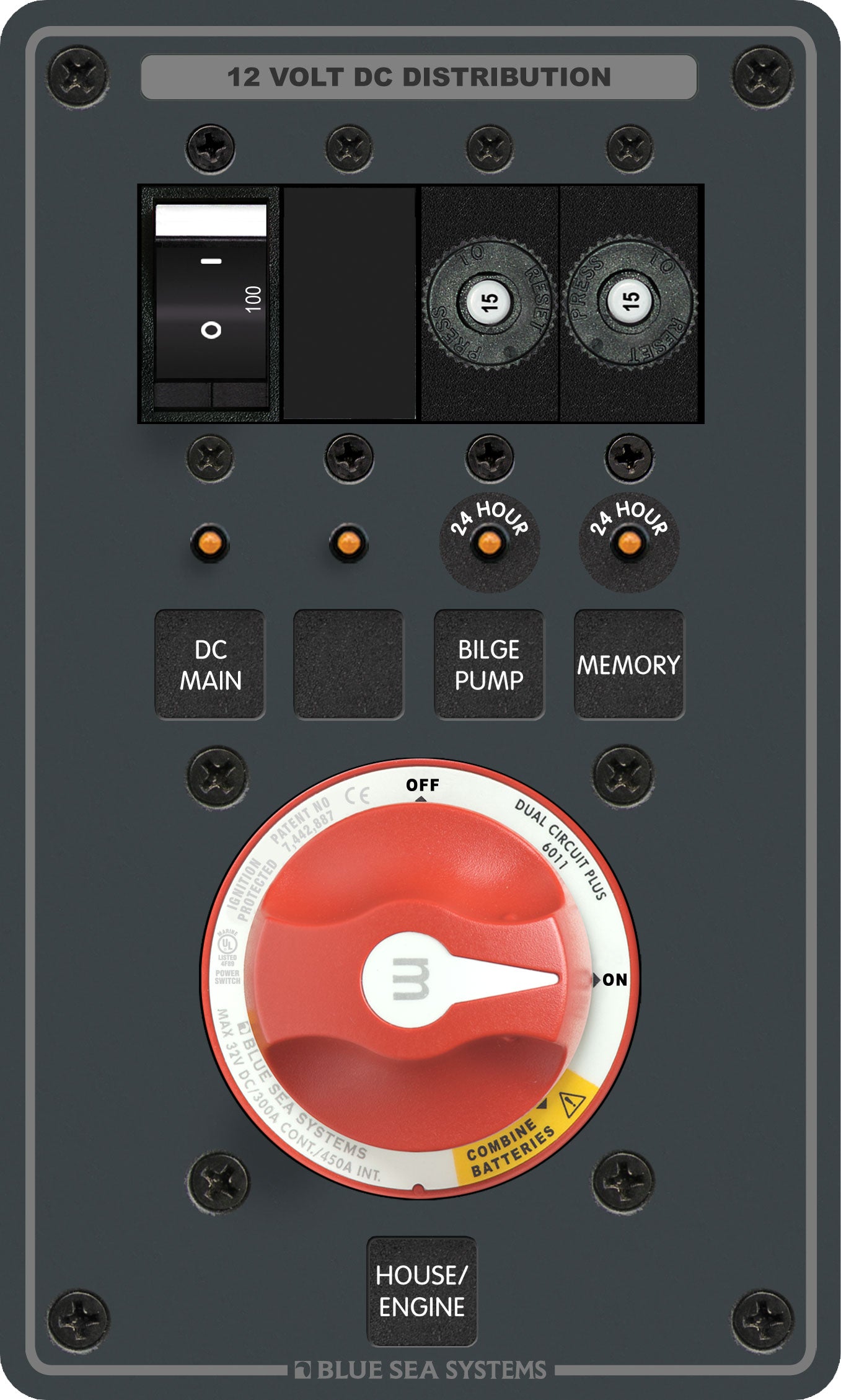

Blue Sea Dual Battery Bank Management Panel

$273.70
by Blue Sea Systems
Type: Battery - Switch

Blue Sea Dual Battery Bank Management Panel

Model: 8686-BSS
  • Isolates the Engine circuit from the House circuit
  • Allows emergency cross connect between isolated battery banks
  • Protects electronics from sags and spikes caused by engine cranking
Specifications
Maximum Voltage 48V DC
Continuous Rating 300A
Intermittent Rating 500A (5 min)
Cranking Rating 10 sec 1500A
Cranking Rating 1 min 775A
Height 7.50in (190.5 mm)
Width 4.50in (114.3 mm)
Depth 3.25in (82.55 mm)
Weight 1.85lb (0.84 kg)
Positions 4
Nominal Voltage 12V DC 24V DC

What's in the Box:
  • 8686 Panel
  • Label Set
  • Instructions
