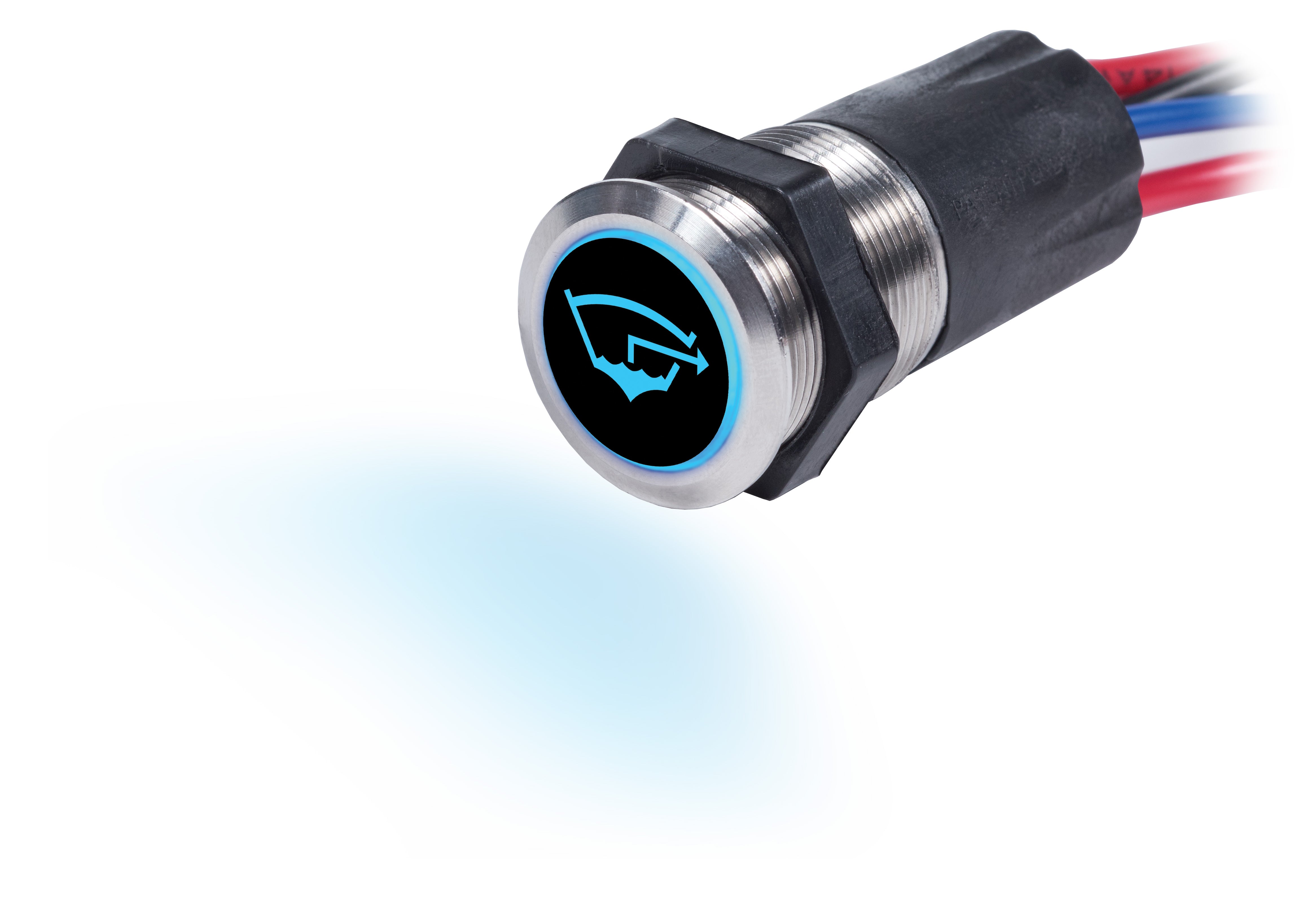

Blue Sea 4181 15A Push Button Backlit Switch Off-(On) Momentary On

$67.79
by Blue Sea Systems
Type: Installation Accesories

Blue Sea 15A Push Button Backlit Switch Off-(On)Momentary On

Model: 4181-BSS
  • Backlit button is blue when OFF and red when ON
  • Five ICON labels included: Accessory, Lights, Anchor Light, Running Light, and Bilge Pump
Specifications
Action OFF-(ON)Momentary On
Amperage 15A @ 12V DC
Nominal Voltage 12V DC
Maximum Voltage 15V DC
Maximum LED Operating Current 20mA
Max Panel Thickness 0.24in (6.1 mm)
Mounting Hole 7/8" (22mm)
Switching Cycles 10,000
Temperature Range -20°C to 55°C
Termination 3" - Bare Wire Pigtail
